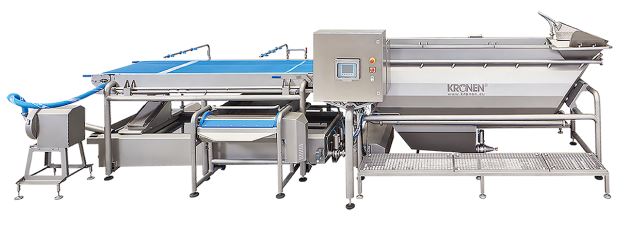

GEWA XL washing machine
Excellent washing results for large quantities of salad
The GEWA XL salad washing machine is presented in an ergonomic, compact design. With its innovative and energy-efficient washing system, it is especially suitable for industrial applications for large processing capacities. Salads, e.g. Iceberg up to 5 t / h or babyleaf up to 1.5 t / h, are washed efficiently and gently by an optimized helical wash system. This means that the rotary process has been designed for the first time for a high capacity KRONEN washing machine.
FUNCTION & DESCRIPTION:The salad products are fed in to the system via a gentle water flume (ideal for broad-leaf products and baby leaf). An ingenious and oriented water supply directly through the easy-cleanable piping does not require any settings. Thanks to this technically innovative combination, the product is extremely gently rotated and optimum distribution is achieved over the entire wash tank volume.
Due to the very compact and space-saving construction, the water supply is greatly reduced.
Also with this salad washing machine, the KRONEN HELICAL system ensures that the product in the wash tank takes a “spiraling” journey through the wash tank, which equates to a distance of about ten times the wash tank length. The product is, therefore, dispersed throughout the washer, to achieve optimal distribution so that the water can access the product 360° during the cleaning process.The washed products are then conveyed by the water stream to the newly designed belt outfeed system. Above the belt outfeed, two individually connectable spraying devices are installed, with which the products can be additionally rinsed.
When passing over the belt outfeed, the products are already pre-dewatered, i.e. excess water is removed from the product. A suction fan is installed below the mesh wire belt; in combination with the air knife system, water carryover can be reduced by more than 50% and delivers pre dried product to your final drying stage
The GEWA XL is suitable for washing large quantities of cut vegetables, especially leafy produce. This also includes salad mixes containing non-floating products such as carrot sticks.
The salad products are fed in to the system via a gentle water flume (ideal for broad-leaf products and baby leaf). An ingenious and oriented water supply directly through the easy-cleanable piping does not require any settings. Thanks to this technically innovative combination, the product is extremely gently rotated and optimum distribution is achieved over the entire wash tank volume.
Due to the very compact and space-saving construction, the water supply is greatly reduced.
Also with this machine, the KRONEN HELICAL system ensures that the product in the wash tank takes a “spiraling” journey through the wash tank, which equates to a distance of about ten times the wash tank length. The product is, therefore, dispersed throughout the washer, to achieve optimal distribution so that the water can access the product 360° during the cleaning process.The washed products are then conveyed by the water stream to the newly designed belt outfeed system. Above the belt outfeed, two individually connectable spraying devices are installed, with which the products can be additionally rinsed.
When passing over the belt outfeed, the products are already pre-dewatered, i.e. excess water is removed from the product. A suction fan is installed below the mesh wire belt; in combination with the air knife system, water carryover can be reduced by more than 50% and delivers pre dried product to your final drying stage
The GEWA XL is suitable for washing large quantities of cut vegetables, especially leafy produce. This also includes salad mixes containing non-floating products such as carrot sticks.
dimensions
| length | 6738 mm |
| width | 2417 mm |
| height | 1920 mm |
power
| total power | 14 kW |
| voltage | 3~400 V N/PE |
| frequency | 50 Hz |
water
| total water volume | 3000 l |
spec. washing machines
| water outlet | 1×3 + 1×2 “ |
| fresh water connection | 2x ¾ (GEKA) “ |
